Prolific MA006B USB to TTL converter pin outs

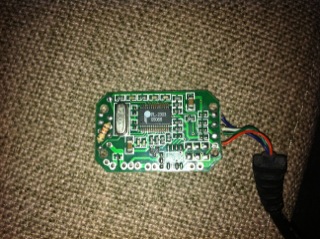

I found an old USB to TTL (RS232) converter and I couldnt find the pin outs for it:

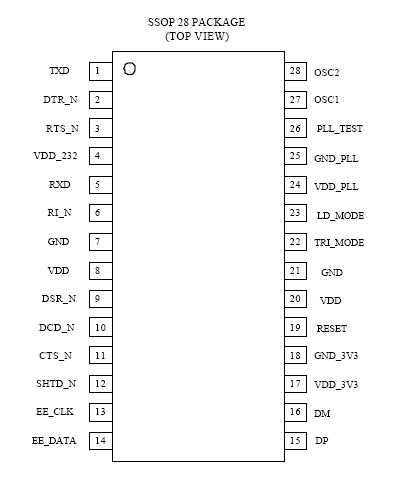

Based on the pins of the prolific chip I worked out that the pins on the left hand side correspond to: [use at your own risk]

1-
2-DTR
3-?RXD
4-
5-RTS
6-?TXD
7-
8-5V
9-
10-GND
